Dantherm HCV460 PRO E1 Heat Recovery Ventilation Unit with Enthalpy
Unde este recomandat?
Recomandat pentru spații în care calitatea aerului este o prioritate — apartamente, case cu izolație termică bună sau birouri unde ventilația naturală este insuficientă. Potrivit atât pentru instalare în construcție nouă, cât și fără lucrări majore în spații existente.
Ask AI consultant
352480-460E1
Order in the next hour and it will be delivered in 72 hours
Guaranteed quality
2-year warranty included
14-day return policy
We are here to provide you with quick answers and technical solutions. We will contact you as soon as possible, usually within 24 business hours.
-
Delivery Information
Learn all about the bulky equipment shipping process, delivery times for in-stock products, and how we ensure packages reach you with maximum safety. -
Customer Support
Our team is ready to help you with details about your order, billing, or after-sales support. Don't let small details ruin your peace of mind – we are just a message away.
-
Contact Us
Do you have a complex project or need a personalized technical vision? Write to us directly or give us a call. An Ovix specialist will guide you step-by-step to choose the best solution for your home's comfort.
Product details
Description

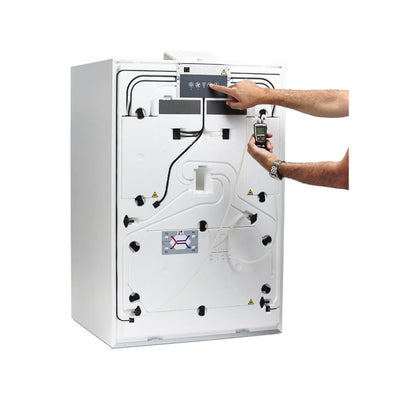

HCV 460 E1 is a high-efficiency residential ventilation unit designed for houses, villas, and apartments. It is delivered as a complete, packaged ventilation unit with an integrated control panel and comes with all necessary components for wall mounting. The HCV 460 E1 also fits perfectly into a 60 x 60 cm cabinet.
Key features
- Demand-controlled ventilation with integrated humidity sensor, reducing energy consumption during periods of low ventilation requirements
- Summer mode, where the intake fan is turned off, and any open window will allow cooler outside air to reduce the room temperature
- Fireplace mode, generating temporary positive pressure indoors to improve chimney draft
- High-efficiency heat recovery
- EC motors with extremely low energy consumption (low SPI)

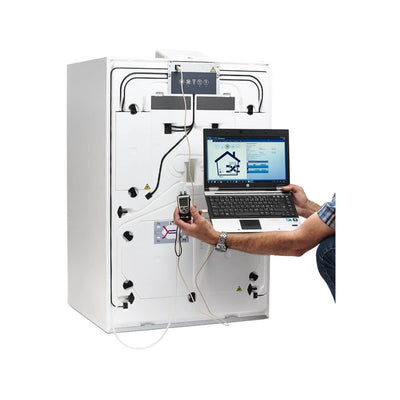

- Easy to install and commission solution, with integrated pressure measurement ports for quick calibration
- Highly customizable unit, with the option to add a wide range of internal and external accessories
- The HCV 460 takes up as little space as a 60 x 60 cm cabinet
Technical specifications
| Parameter | Unit | Value |
|---|---|---|
| Maximum flow rate at 100 Pa | m³/h | 460 |
| Declared maximum flow rate at 100 Pa | m³/h | 360 |
| Reference flow rate EN 13141-7 at 50 Pa | m³/h | 252 |
Performance
| Parameter | Unit | Value |
|---|---|---|
| Thermal efficiency according to EN 13141-7 | % | 77 |
| Air tightness (external and internal) according to EN 13141-7 | % | <2% (Class A1) |
| Filters according to ISO16890 | – | ISO Coarse 75% (optional on intake: ePM1 >50%) |
| Filters according to EN779 | – | G4 (optional on intake: F7) |
| Ambient installation temperature | °C | +12 to +50 |
| Outdoor temperature without preheater | °C | -12 to +50 |
| Outdoor temperature with preheater | °C | -20 to +50 |
| Maximum absolute humidity in exhaust air | g/kg | 10 |
Casing
| Parameter | Unit | Value |
|---|---|---|
| External dimensions without wall brackets | mm | 540 × 549 × 1050 |
| Duct connections | mm | Ø160 – female type |
| Weight | kg | 40 |
| Polystyrene insulation thermal conductivity | W/mK | 0.031 |
| Insulation thermal transfer coefficient | W/m²K | U < 1 |
| Polystyrene insulation fire classification | – | DIN 4102-1 class B2 / EN 13501 class E |
| Drain hose (included) | – | Ø ¾ / 1 m |
| Casing colour | RAL | 9016 / galvanized metallic grey |
Electrical
| Parameter | Unit | Value |
|---|---|---|
| Voltage | V | 230 |
| Max power consumption without/with preheater | W | 230 / 2.080 |
| Frequency | Hz | 50 |
| Protection class | – | IP21 |
