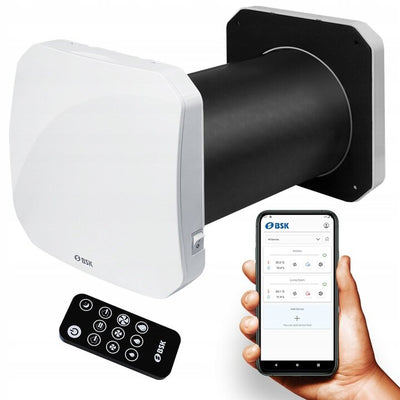

BSK Heat recovery unit, Zephyr Mini, ceramic, alternating flow, 4 operating modes, 2 G3 filters, tube length 250-500mm, Ø94, mounting hole Ø110

BSK Zephyr Mini recovers heat using a bidirectional fan and a ceramic heat exchanger.

The device operates in a 70-second cycle, alternating between air extraction and supply. In the extraction phase, warm air from the room heats the ceramic core. When the airflow reverses, fresh air from outside passes through the heated core and enters the room in a conditioned state.

With a power consumption of only a few watts and a thermal efficiency of up to 90%, BSK Zephyr Mini helps you save energy while ensuring efficient ventilation.

Multiple units can be connected via Wi-Fi and controlled using the included IR remote control.

BSK Zephyr Mini Heat Recovery Unit – Smart Ventilation with High Efficiency

BSK Zephyr Mini is a modern alternating-flow ventilation solution designed to maintain a healthy indoor climate and reduce energy consumption. The system uses a bidirectional fan and a ceramic heat exchanger, capable of recovering up to 90% of the thermal energy from the exhausted air. This significantly reduces heat loss and lowers heating costs.
The device operates in an automatic 70-second cycle, alternating between air extraction and intake, ensuring permanent and balanced ventilation.

Recommended Use

BSK Zephyr Mini is ideal for:

• Controlled ventilation of residential and commercial spaces;

• Air refreshment in bedrooms, living rooms, offices, or kitchens;

• Prevention of condensation and mold formation in living spaces;

• Well-insulated rooms or those with very tight windows, where natural ventilation is insufficient;

• Individual use or in multiple Wi-Fi synchronized systems.

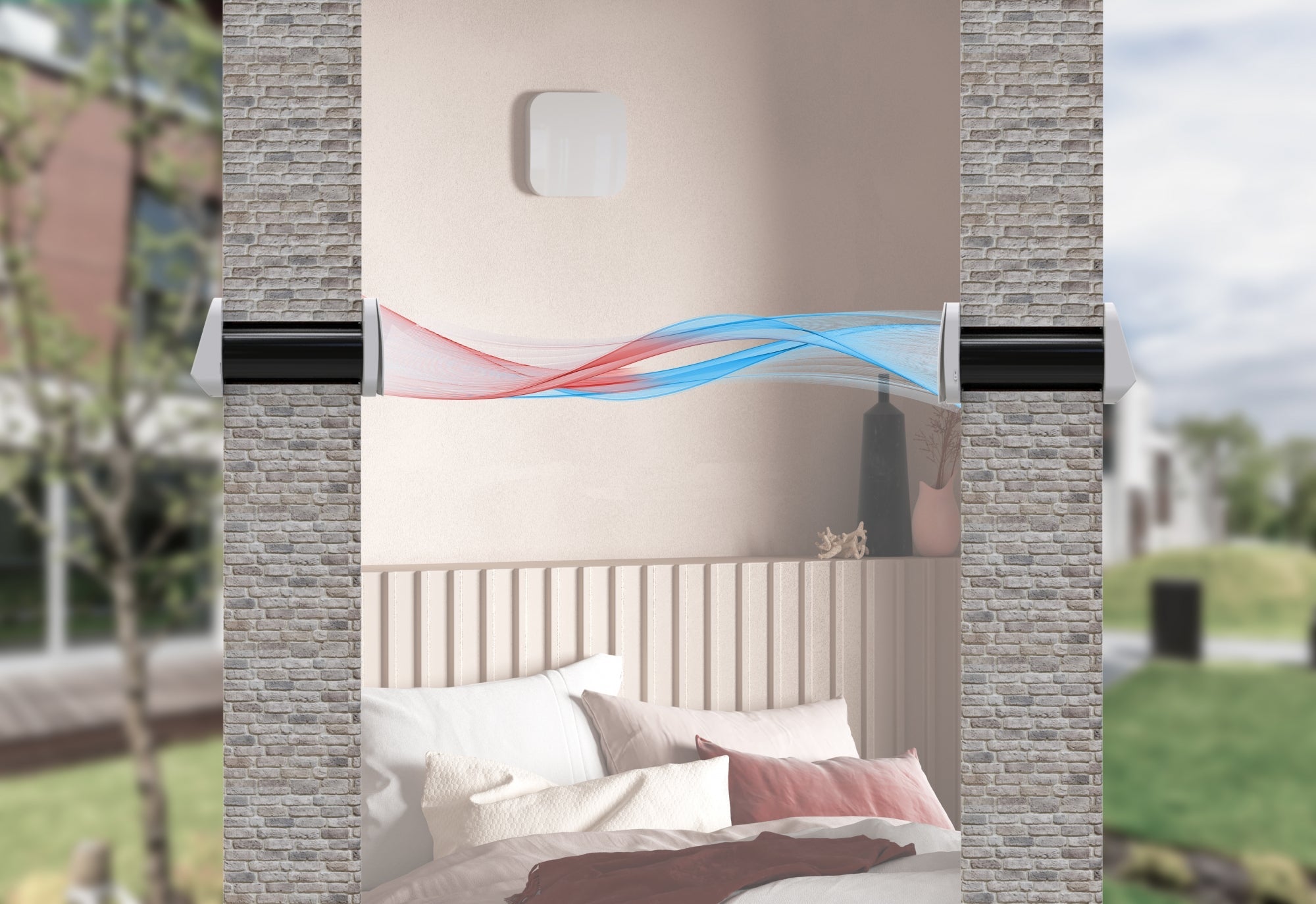

Thanks to its compact dimensions, the unit can be integrated directly into the wall, suitable for both new constructions and renovations.

Main Advantages

• Thermal efficiency up to 90%;

• Alternating flow operation for balanced intake and exhaust;

• Low energy consumption (only a few watts);

• 4 operating modes: automatic, continuous ventilation, night mode (extra-silent), turbo mode;

• Efficient filtration thanks to the two included washable G3 filters;

• Easy control via IR remote and Wi-Fi connectivity;

• Durable and high-efficiency ceramic exchanger;

• Compact design, suitable for small and medium rooms;

• Quick installation, without complex duct systems;

• Quiet operation for optimal acoustic comfort.

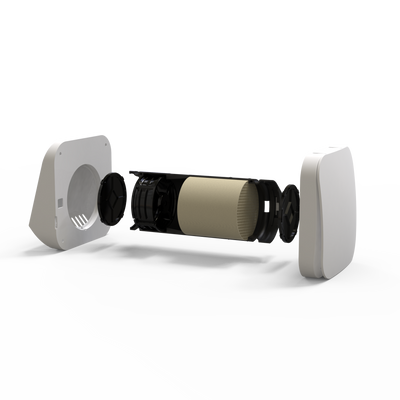

Materials and Components

• Heat exchanger: ceramic with high thermal accumulation capacity;

• Telescopic tube: adjustable between 250–500 mm;

• Mounting hole diameter: Ø110 mm;

• Inner tube diameter: Ø94 mm;

• Outer casing: impact-resistant and UV-resistant ABS;

• Filters: 2× G3, washable and reusable;

• Fan: bidirectional electric motor with precision bearings.

Installation Recommendations

• Direct wall mounting, with tube adjustment according to wall thickness;

• Ideal positioning is at the top of the exterior wall, for optimal air circulation;

• Avoid mounting near heat sources or obstacles.

Usage Recommendations

• The system operates automatically in 70-second cycles (exhaust–intake);

• Can be used individually or in synchronized pairs for a constant airflow;

• Regular cleaning of filters ensures maximum performance and long lifespan.

Connectivity

• Possibility of interconnecting units via Wi-Fi and centralized control;

• The IR remote control allows selecting operating modes and adjusting fan speed.

Storage Recommendations

• Store in original packaging, in a dry place away from dust and moisture;

• Optimal storage temperature: +5°C – +40°C;

• Avoid mechanical shocks and prolonged sun exposure.
