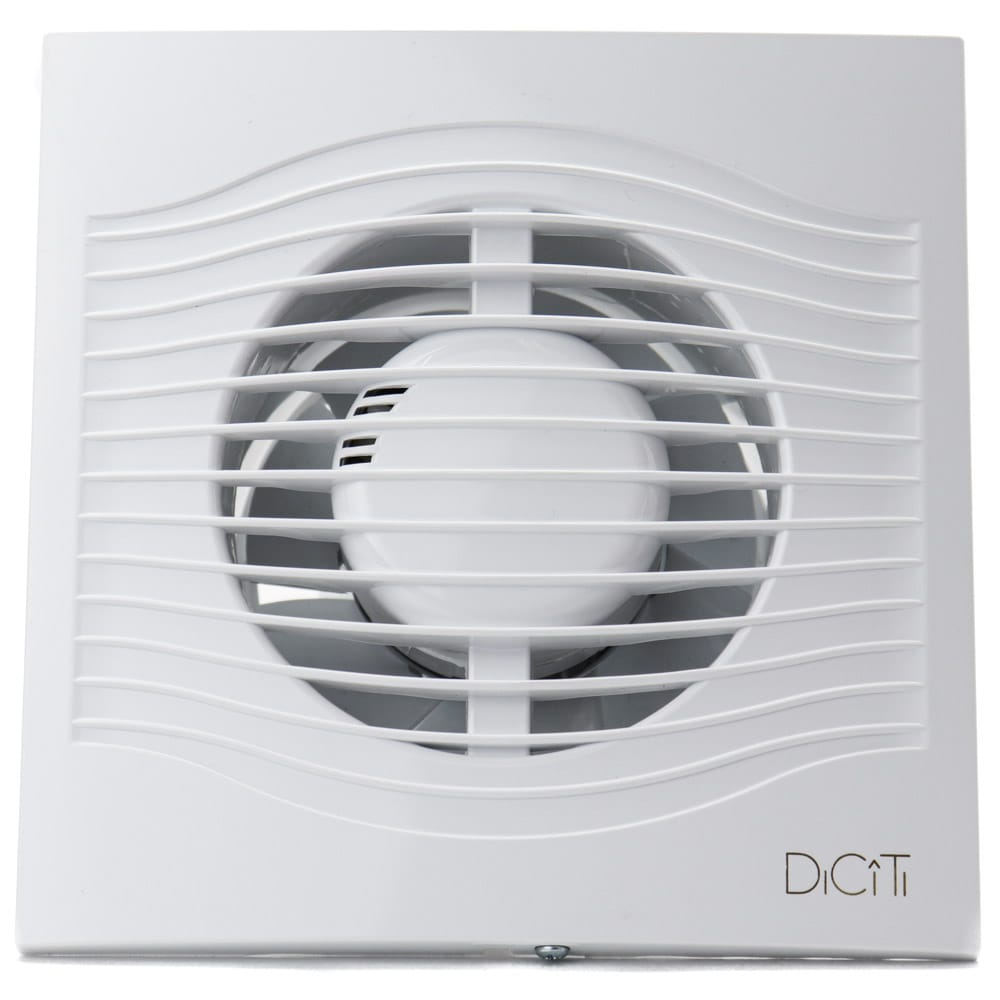

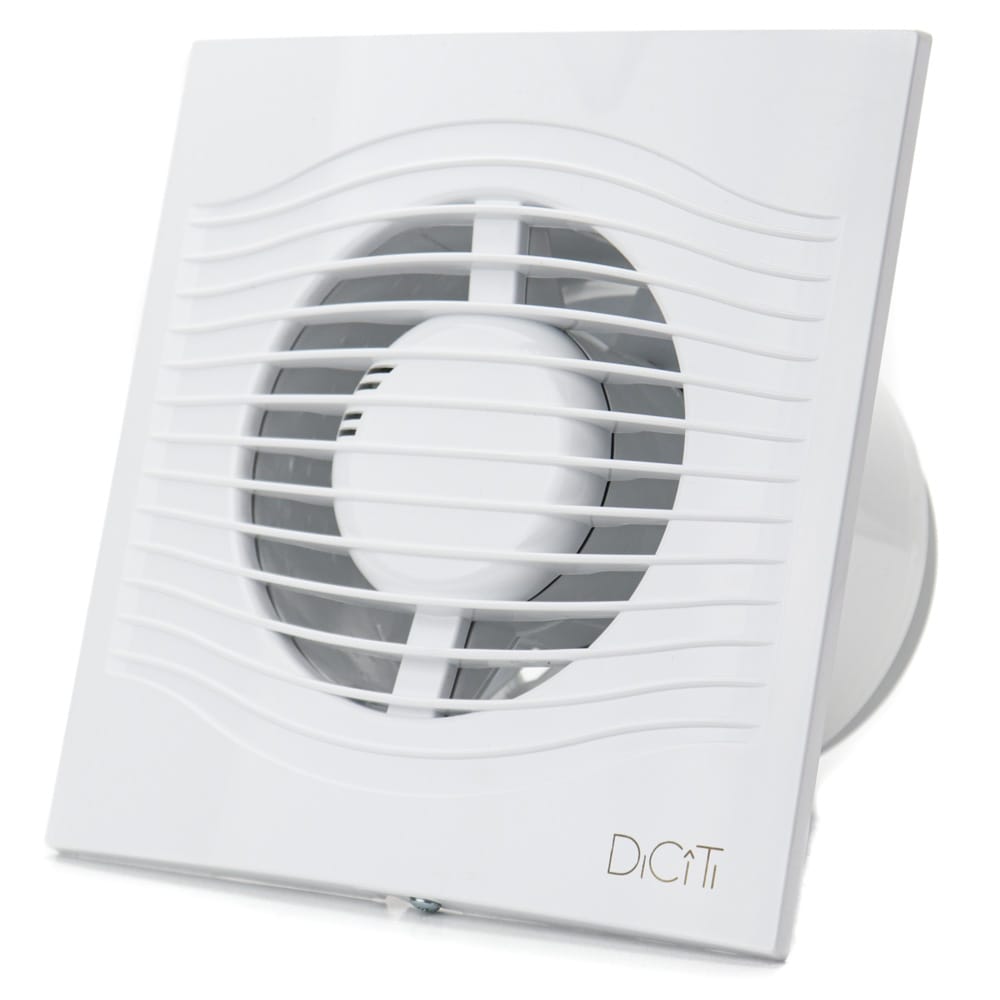

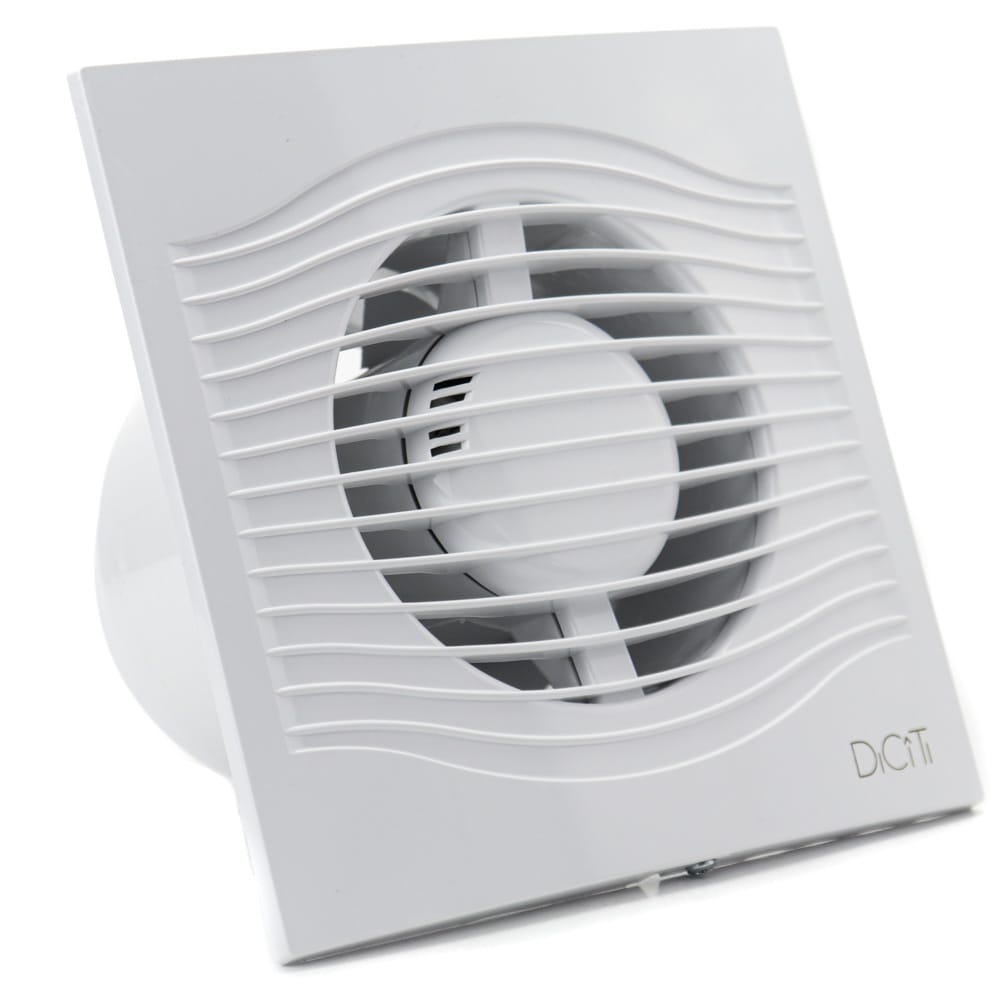

SLIM 5C MRH Bathroom Fan - Exhaust fan with non-return damper D 125 and Fusion Logic 1.1 control function

GENERAL CHARACTERISTICS BATHROOM FAN

Product type: SLIM bathroom fan

Usage: Residential, Commercial

Used for: Kitchen, Bathroom

Shape: Square

Mounting type: Wall, Ventilation duct

Material: ABS

Functions: Backdraft damper, Humidity sensor, Timer, Overheating protection, Operation indicator, Silent

Package contents: 1 x Fan, Installation and usage manual

Colour: White

TECHNICAL SPECIFICATIONS

Max airflow: 140 m³/h

Noise level: 30 dB

Power: 10 W

Protection class: IP 24, IP 25

Warranty: 5 years

DIMENSIONS

Length: 180 mm

Width: 180 mm

Diameter: 125 mm

Depth: 90.5 mm

• For permanent or periodic ventilation of bathrooms, showers, kitchens and other spaces.
• For installation in ventilation ducts or connected to ducting
• Modern design
• The body and casing are made of high-quality and durable ABS plastic resistant to ultraviolet radiation
• Ultra-thin front panel
• Bearing motor with extended operating life (up to 40,000 working hours). Designed for continuous operation and requires no maintenance
• Motor protection against overheating
• Installation is simple, you only need a few screws.
• Degree of protection of electrical equipment against penetration of solid objects and water - IP25 with MRH-02 options and in combination with - IP 24

Specific features:

The SLIM 5C MRH exhaust bathroom fan quickly removes unpleasant odors and maintains a comfortable microclimate in bathrooms, showers, kitchens, and other small spaces. The body and grille are made of strong, high-quality ABS plastic. Bearing motor with overheating protection.

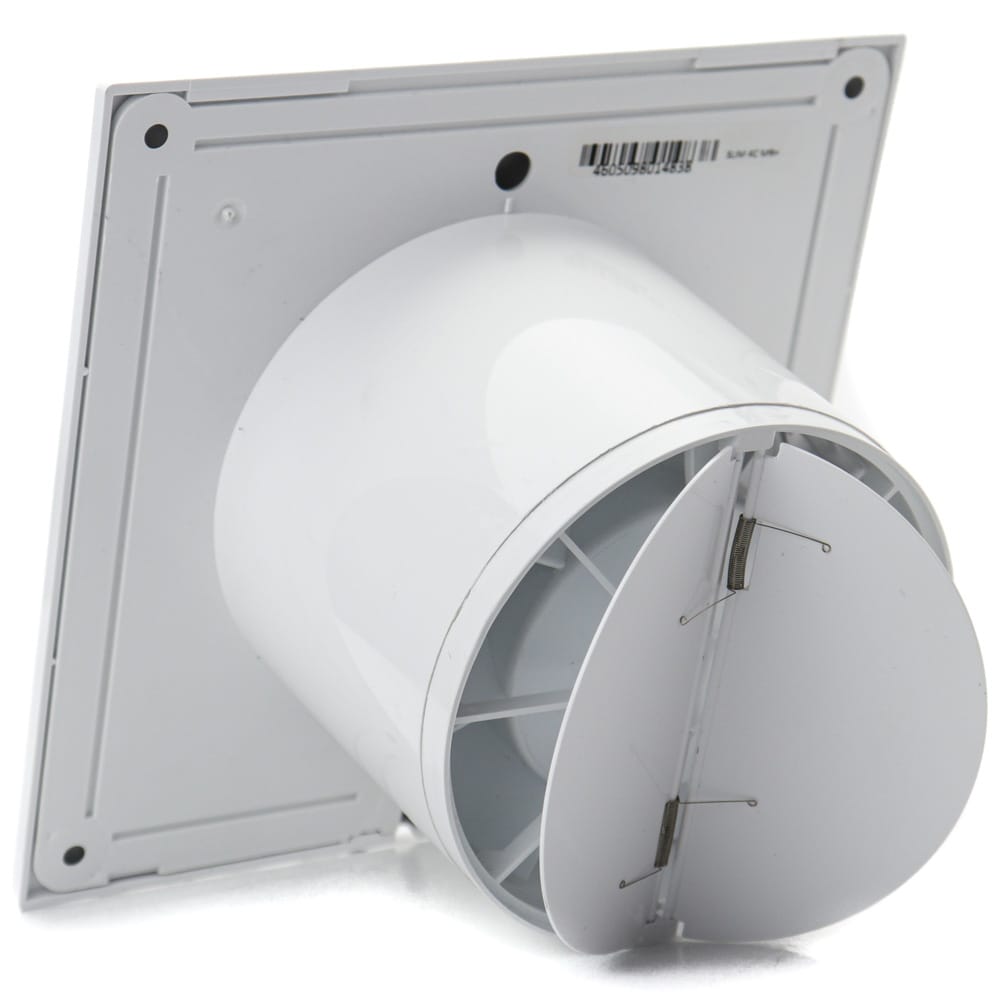

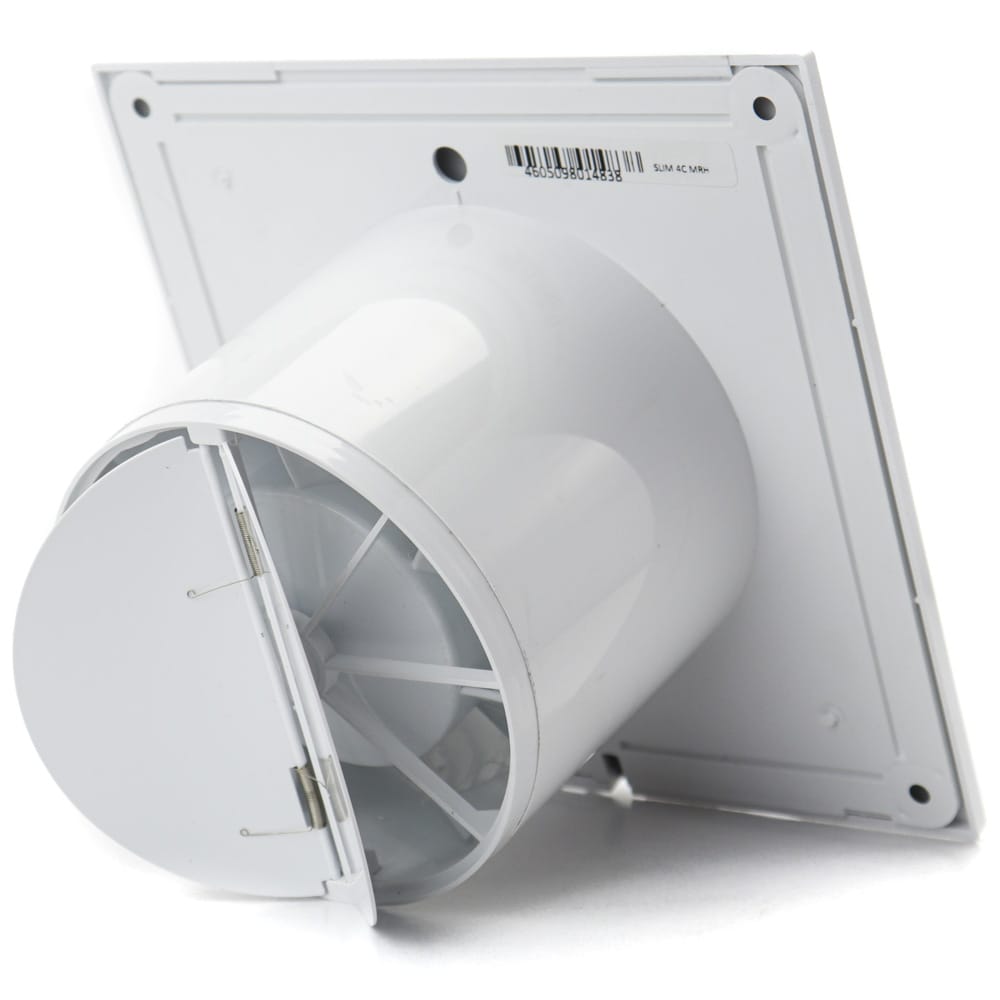

Backdraft damper. Prevents the penetration of odors and humidity from the ventilation duct, as well as wind, dust, and insects from outside. When the fan is operating, the damper opens to allow the extracted air to be discharged from the room; when the fan stops, it closes, providing a barrier against air currents, dust, insects, and other foreign bodies entering the fan.
